Ucom PU300WB Windows Installation

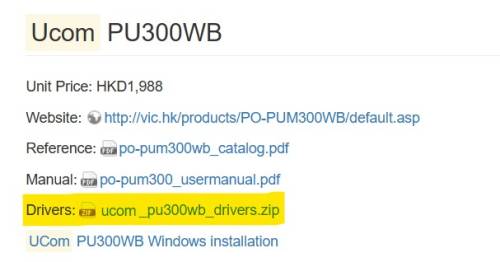

Click on the link below, and find ucom_pu300wb_drivers.zip and click to Download.

Ucom PU300WB Drivers

After downloading, open the folder, find RPP300Setup.exe, and double-click to download.

Then install according to the installation instructions.

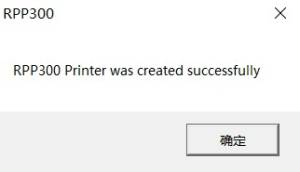

When jump out the message box “RPF300 Printer was created successfully”, The RPF300 printer driver is successfully installed.

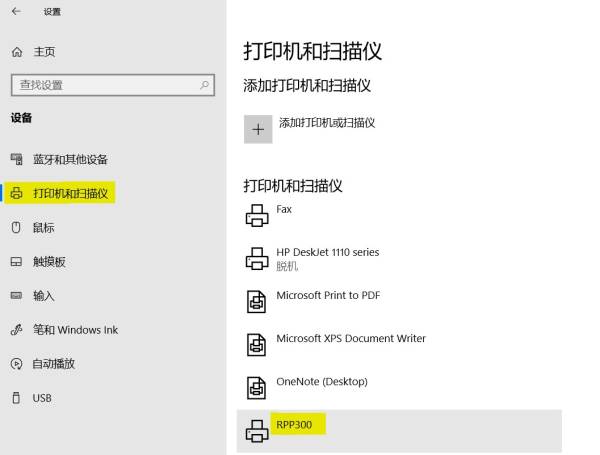

After successful download, you will find the RPF300 printer in Settings → Printers and Scanners

Click RPF300 Printer, select Manage, and then select Printer Properties.

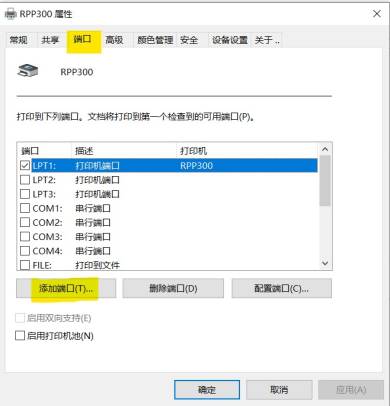

Find Port in the menu bar and click Enter.

Click Add Portand click OK

Select Standard TCP/IP Port in the jump out message box to add port.

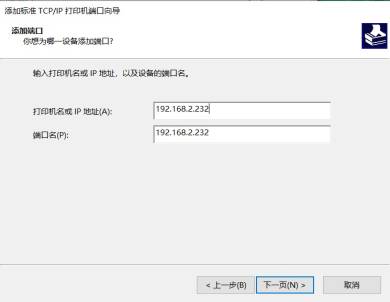

Then enter the port that the printer needs to use.

Select Standard Default for the device type, click next page.

Then you can see the basic information of the new port, check that if there are no problems, and then click Finish.

You will see that the available ports contain the new port we just set up, tick it and apply.

You can modify the name of the printer in General, like RPP300 232

If you have two RPP300 printers and want to install them on the same computer, you need to reinstall the print driver and follow the steps above to set up a new port for the new printer.

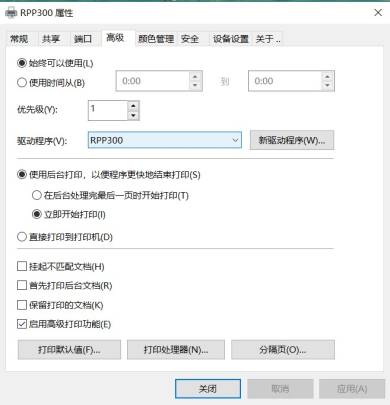

Don't forget to find Advanced in the menu bar of the printer properties, and select the same RPP300 print driver for both printers. This will ensure that what they print out is the same.

This printer needs to be connected by using WiFi, so we need to configure the IP and Port for it.

First of all, We need to open the USB Virtual Com Driver folder, find PL2303_Prolific_GPS_1013_20090319.exe, double-click to install.

After the installation is successful, please restart the computer.

Then we need to use a USB cable to connect the printer and the computer.

Click Port. If it shows like the image above, it shows like: PL2303HXA PHASED… , please unplug and reconnect the USB cable, until it shows like the image below.

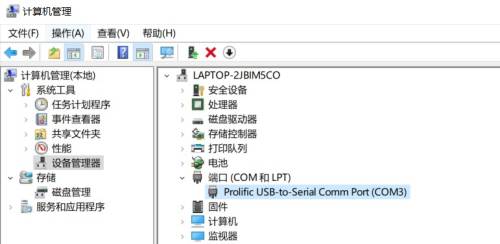

Please make a note of the COM number in parentheses(like the image below, please make a note of COM3), We'll use that in the later step.

Open the WiFi Tools folder, find WifiTool.exe, double-click to start it.

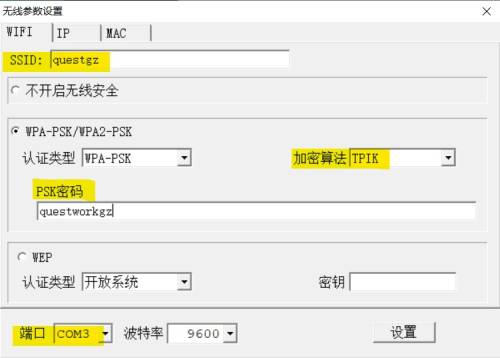

Please fill in the highlighted sections like the image below. For the Port, select the port that you noted earlier.

when you click SET, you will find the printer print three lines. That means you set the wifi successfully.

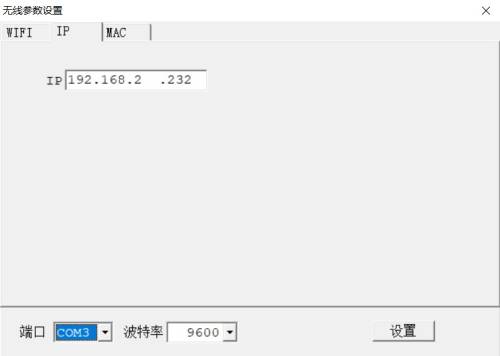

Click IP in the menu bar to set the printer's IP. Don't forget to choose the right port.
